High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity

High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity

Duży Obraz :  High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity

Szczegóły Produktu:
Miejsce pochodzenia: Guangdong, Chiny
Nazwa handlowa: learnew
Zapłata:
Minimalne zamówienie: 1000
Kontakt

High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity

Opis
Materiał chipowy: Algainp Skuteczność świetlna: 25 lm/W
Temperatura barwowa: R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K Napięcie wejściowe: R = 2,0-2,4Vg = 3,0-3,4 VB = 3,0-3,4VW = 3,0-3,4 V.
Długość życia: 10000 godzin Strumień świetlny: R=30-40 mb G=60-70 mb B=20-30 mb W=70-90 mb
Temperatura pracy: -20 - 80 ℃ Moc: 4W
Rozpraszanie mocy: 0,4 Waga produktu: 0,15 kg
Temperatura przechowywania: -40 - 110 ℃ Kąt widzenia: 120°
Aktualny: 350mA-750mA Rozmiar: 3,5*3,5 mm
Opór termiczny: 0,17-0,28C/W.
Podkreślić:

High Power LED 3535 RGB

,

3W SMD LED high lumen

,

5050 RGBW LED chip

High Power LED 1W/3W SMD 3535 5050 RGB/RGBW LED with High Lumen Intensity
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 0

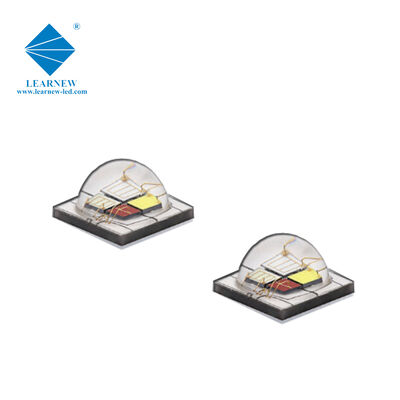

This ceramic substrate packaged LED features a compact structure designed for surface mount technology. It delivers high luminous flux, excellent luminous efficiency, strong current impact resistance, superior thermal conductivity, and extended service life. Chip current and voltage specifications can be customized according to your project requirements.
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 1
Technical Specifications
Style SMD LED
Circuit 1PCS in series, 1PCS in parallel, 4 circuit
Whole Size 3.5 × 3.5 mm
Voltage R=2.0-2.4V, G=3.0-3.4V, B=3.0-3.4V, W=3.0-3.4V
Lens R1.5 mm
Substrate Ceramic

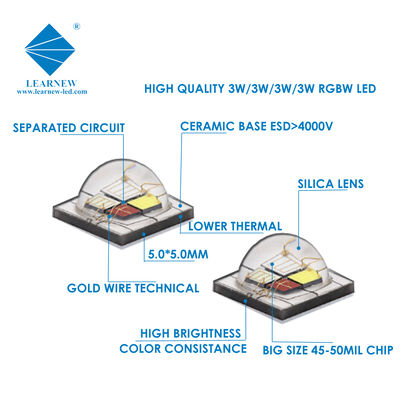

Design Advantages
  • Ceramic leadframe construction
  • High ESD protection rating
  • Standard A Class chips
  • Excellent cost performance
  • Gold wire bonding

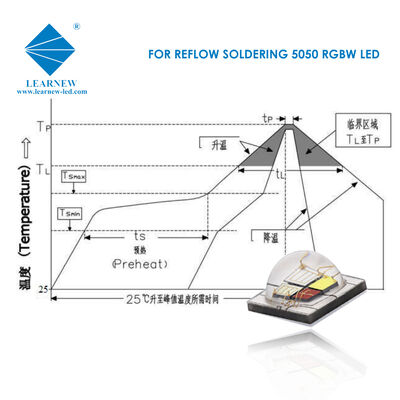

  • Easy reflow soldering process
Detailed Product Images
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 2 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 3 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 4 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 5 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 6
Related UV LED Products
LEARNEW UV LED Chip Series
UVC LED 250-285nm (395-405nm): Ideal for hospitals, air conditioning systems, disinfection cabinets, water treatment equipment, water dispensers, sewage treatment plants, swimming pools, food and beverage processing equipment, maternal and child supplies sterilization, and portable sterilizers.
UVB LED 305-315nm: Used in medical industry for vitamin D3 production and treatment of metabolic bone diseases including osteoporosis.
UVA LED 365-395nm: Applications include UV adhesive curing for LED growing markets, 3D printing, displays, electronic medical devices, instrumentation, UV coating curing for building materials, furniture, home appliances, automotive industries, UV ink curing for printing and packaging, mosquito lamps, and nail lamps.
LN-SMD5050RGBW-P4-MC
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 7 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 8 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 9
